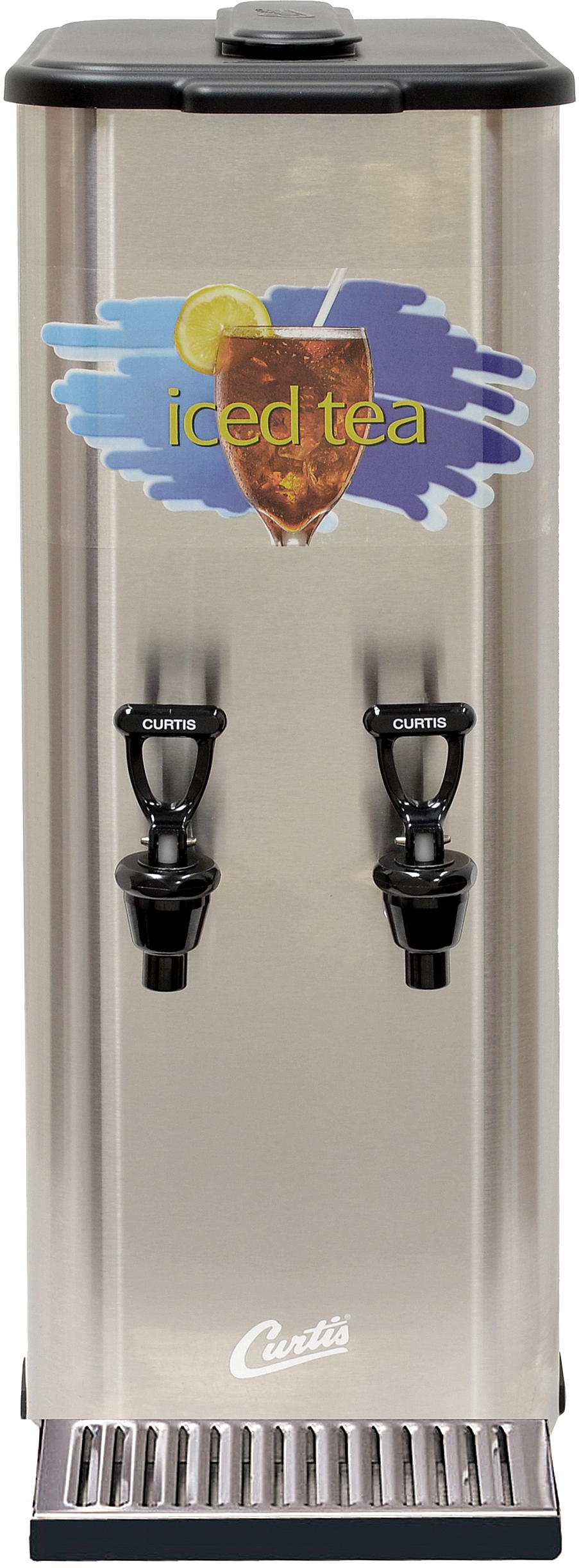

Curtis TCC1
Model: TCC1
Overview
Curtis’ Oval Tea Dispensers are uniquely engineered with an enhanced mixing chamber and venturi system to optimize the blending of bag-in-box concentrate and fresh water. Now you can consistently serve delicious and refreshing iced tea glass after glass.
Features
- Mixing chambers have been designed and engineered for enhanced blending performance.
- Easily adjustable concentrate to water mixing ratio.
- Greater faucet clearance.
- Drip tray and quick disconnect included.
- Braided hoses.
- Pressure regulators mixes a range of 5:1 to 15:1 concentrate to water ratio.
- Precision TCC2P with individual pressure regulators and product divider.
- Extra-length hose for under-counter or remote bag-in-box applications.
- Rear shut-off valve.
- Shelf will accommodate two 1/2 gallon bottles or bag-in-box containers.
- Solid plastic lid.
- Alternate merchandising label available
Specifications
- Faucet Clearance: 9.25"
- Dimensions : 24"H x 8.875"W x 12.875"D
- Shipping Weight: 22 lbs.
- Cube (cu. ft.): 6.2
