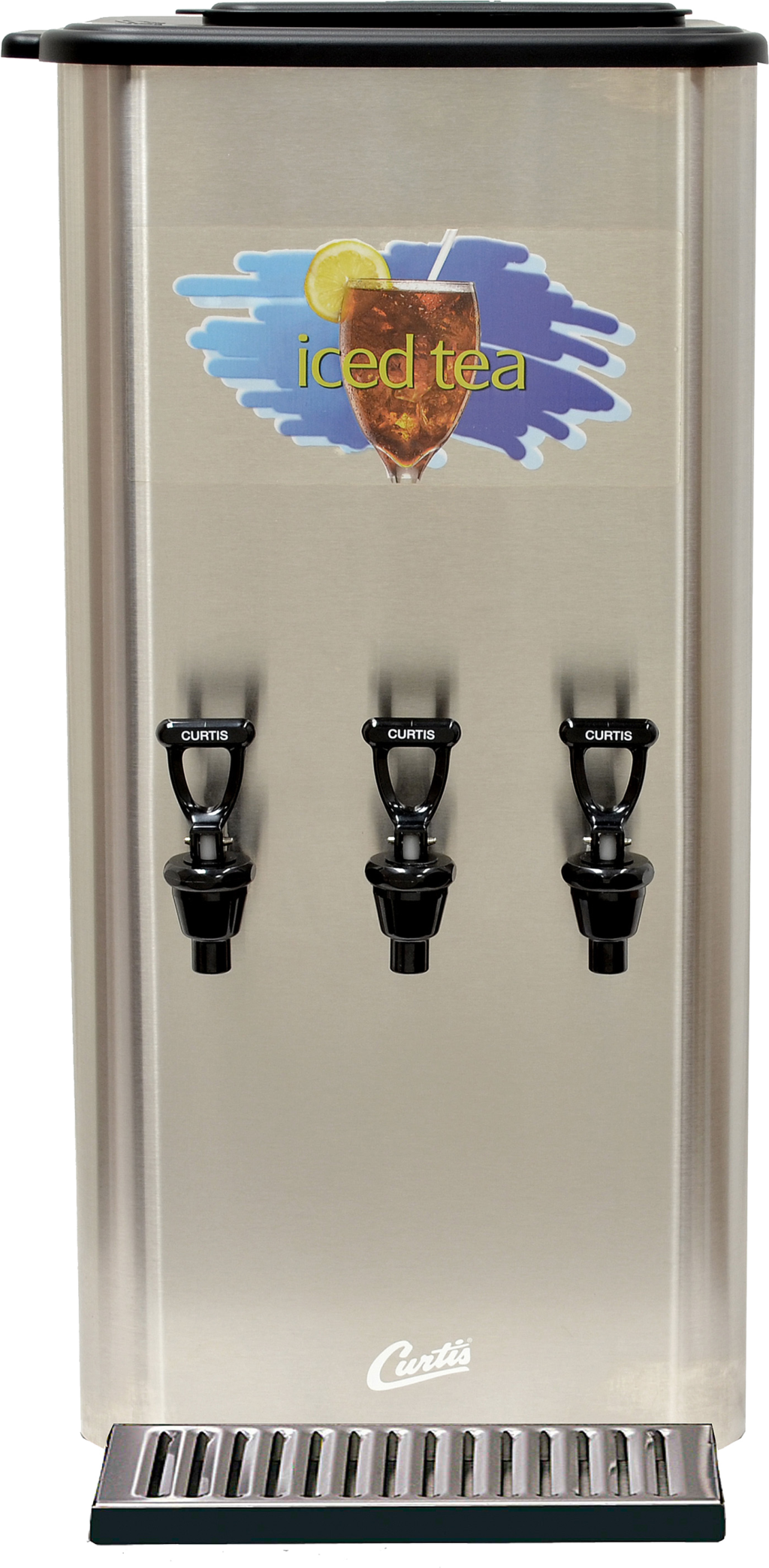

Curtis TCC3
Model: TCC3
Overview
Curtis’ Oval Tea Dispensers are uniquely engineered with an enhanced mixing chamber and venturi system to optimise the blending of bag-in-box concentrate and fresh water. Now you can consistently serve delicious and refreshing iced tea glass after glass.
Features
• Mixing chambers have been designed and engineered for enhanced blending performance.
• Easily adjustable concentrate to water mixing ratio.
• Greater faucet clearance.
• Drip tray and quick disconnect included.
• Braided hoses.
• Pressure regulators mixes a range of 5:1 to 15:1 concentrate to water ratio.
• Precision TCC2P with individual pressure regulators and product divider.
• Extra length hose for under-counter or remote bag-in-box applications.
• Rear shut-off valve.
• Shelf will accommodate two 1/2 gallon bottles or bag-in-box containers.
• Solid plastic lid.
• Alternate merchandising label available
Specifications
- Faucet Clearance: 9.375"
- Dimensions: 24.375"H x 13"W x 8.875"D
- Shipping Weight: 25 lbs.
- Cube (cu. ft.): 6.2
